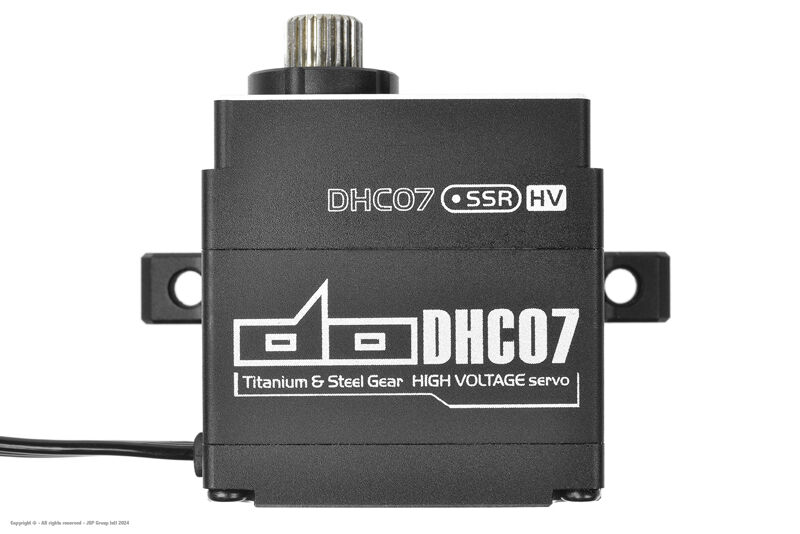

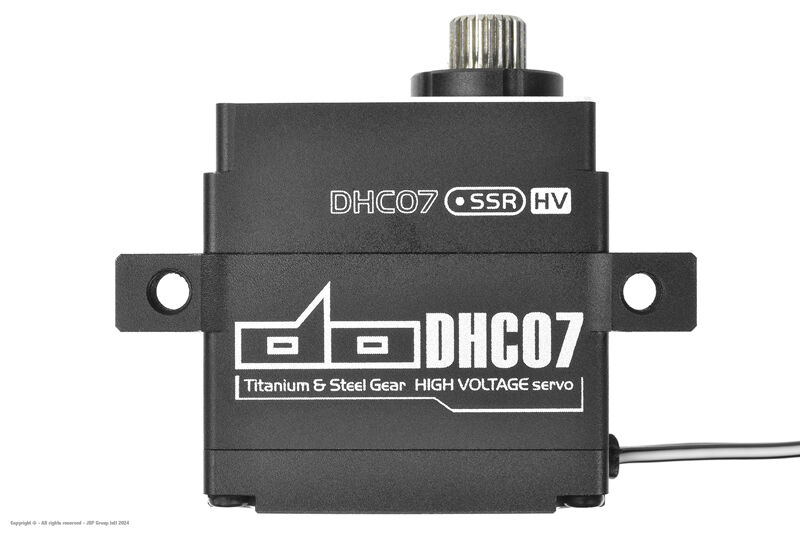

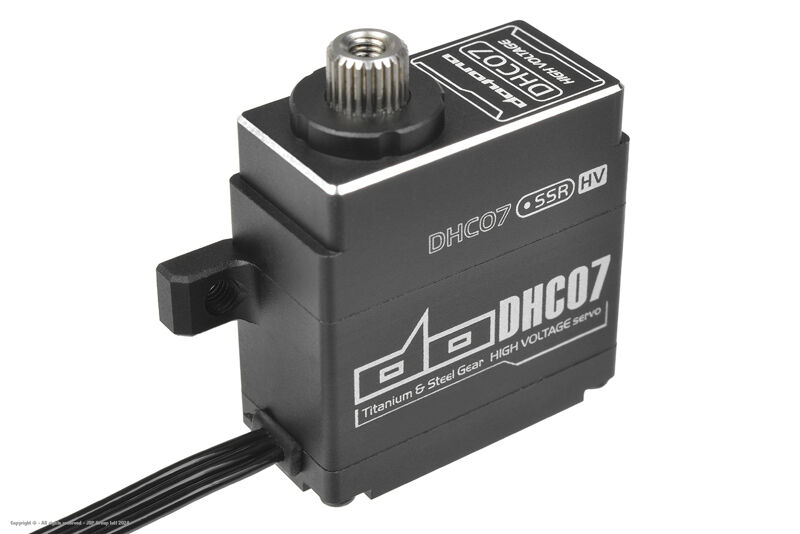

Doyono DHC-07 Digital HV Pan Car Servo
The Doyono DHC-07 is a compact and lightweight digital high-voltage servo developed for 1/12 pan cars and other precision racing applications where speed, accuracy and low weight are essential. With its coreless motor, titanium/steel gear set and aluminium case, the DHC-07 delivers strong steering performance in a very compact servo format.
Running on 6.0V to 8.4V, the DHC-07 offers up to 8.0 kg/cm torque and a fast 0.059 sec/60° transit speed at 8.4V. This makes it an excellent choice for drivers who need quick steering response, precise control and reliable performance in competitive pan car setups.
Features:
- Digital high-voltage servo for 1/12 pan car applications
- Compact midi-size design with low 32 g weight
- Fast 0.059 sec/60° transit speed at 8.4V
- Up to 8.0 kg/cm torque at 8.4V
- Coreless motor for smooth and responsive steering control
- Titanium/steel gear set for strength and durability
- Aluminium case for rigidity and efficient heat dissipation
- Dual ball bearings for smooth operation

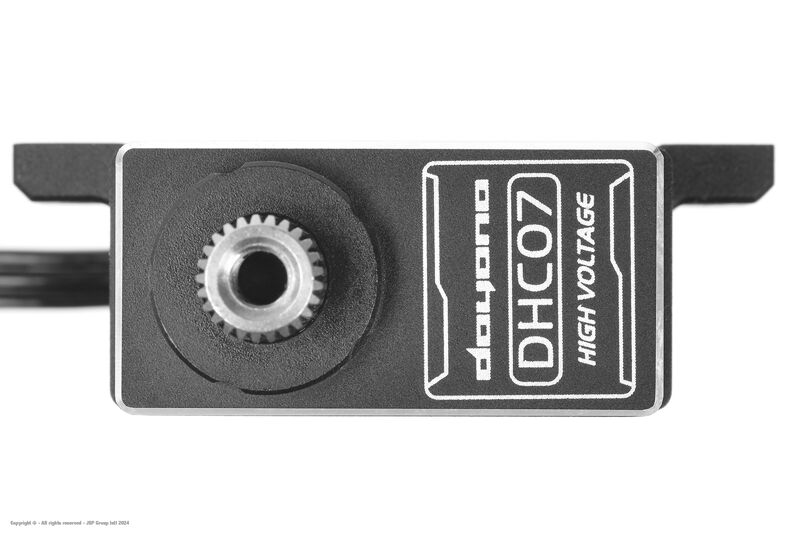

- 25T output spline
- Water- and dust-resistant design
Technical Specs:
- Brand: Doyono
- Item Number: DO-DHC07
- Model: DHC-07
- Servo Type: Midi Servo
- Technology: Digital HV
- Application: Pan Car / 1/12 Racing
- Operating Voltage: 6.0V – 8.4V
- Motor Type: Coreless Motor
- Gears: Titanium / Steel
- Ball Bearings: Dual Ball Bearings
- Spline: 25T
- Speed @ 6.0V: 0.08 sec/60°
- Speed @ 7.4V: 0.07 sec/60°
- Speed @ 8.4V: 0.059 sec/60°
- Torque @ 6.0V: 6.0 kg/cm
- Torque @ 7.4V: 7.5 kg/cm
- Torque @ 8.4V: 8.0 kg/cm
- Length: 28.5 mm
- Width: 13.4 mm
- Height: 29.2 mm
- Weight: 32 g
- Case: Aluminium Case
- Protection: Water / Dust Resistant
Packaging Content:
- 1x Doyono DHC-07 Digital HV Servo

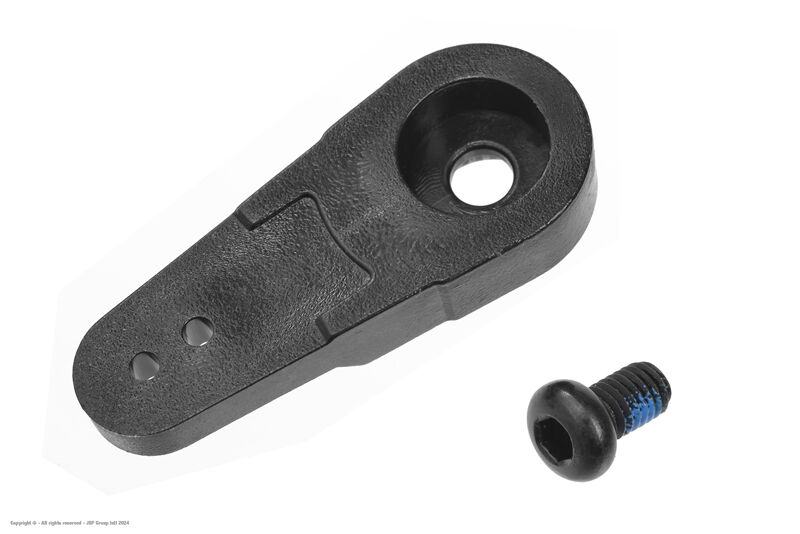

- Servo accessories
- Mounting hardware
