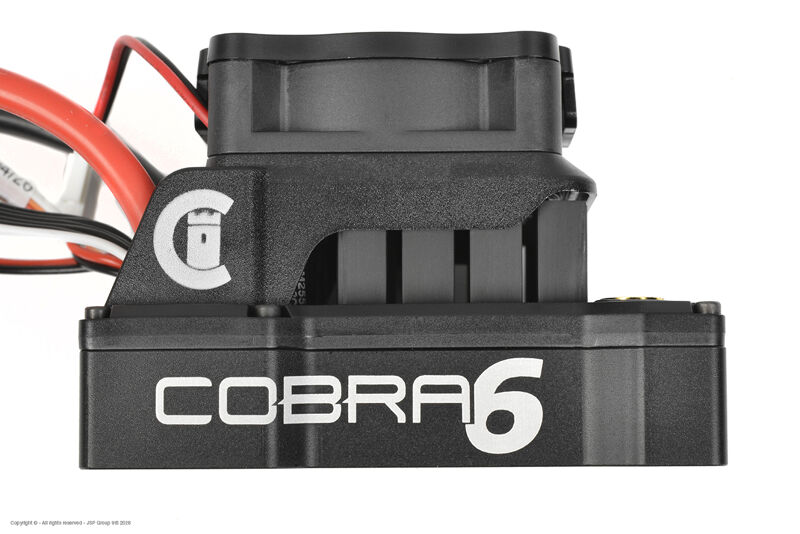

Castle Creations - COBRA-6 - Sensored-Sensorless Car ESC Car ESC - 2-8S - w/ 1520-1650KV Sensored Motor
Building on the success of the COBRA 10 and COBRA 8, we are excited to announce the release of the all-new COBRA 6,engineered for 1/7th and 1/5th scale high-performance RC applications!The COBRA 6 is available to purchase as an ESC-only option or packagedwith three Castle 4-POLE 12-SLOT motor options to overpower a wide rangeof 1/7th and 1/6th scale vehicles.
The COBRA 6 AND 1520-1650KV COMBO is a perfect upgrade for 1/8, 1/7 and 1/6 scale vehicles weighing up to 18lbs and up to 8S LiPo. The 1520-1650Kv has all of the secret sauce that the big brother 1717-1650Kv has, but in a more compact diameter, fitting into smaller spaces without modifications to your chassis.
NEW FEATURES:
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Optional smartphone-based programming with the B-LINK™ Bluetooth Interface (sold separately) and the Castle Link 2 App on Google Play or Apple App Store.
- Mounting holes located in bottom of aluminum case for installation into vehicle.
KEY FEATURES:
- Input Voltage Range 2S-8S LiPo
- Sensorless, Sensored and SmartSense™ Running Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 40MM cooling fan
- Waterproof design for all weather conditions
- Enhanced Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Easily tune and update ESC with USB and Bluetooth™ programming options
- Castle Link USB programming (Castle Link V4 included!)
- Optional smartphone-based programming with the B-LINK 2 Bluetooth Interface (sold separately) and Castle Link 2 app available on Google Play or Apple App Store
- Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
MOTOR FEATURES:
- Input Voltage range: 3s-8s LiPo
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Winding
- 10 AWG, High-Strand-Count Silicone-Insulated Wire w/6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA.
- Backed by Castle Creations' 1-YEAR WARRANTY
COBRA 6, 33.6V ESC W/1520-1650KV SENSORED COMES WITH:
- Cobra 6 ESC
- 4-POLE Sensored 1520-1650KV Motor
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
- Motor Quick Start Guide
|
