General Info

Item Nr

CC-010-0166-14

Barcode

819326012600

Brand

Castle Creations

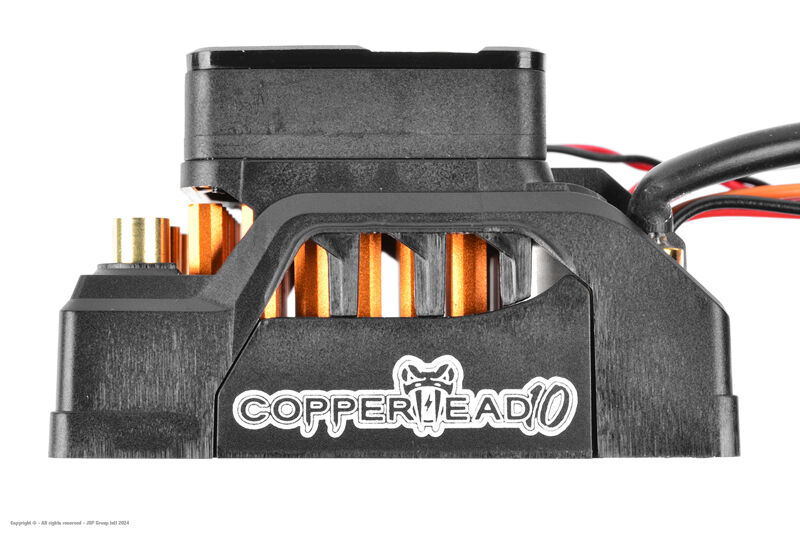

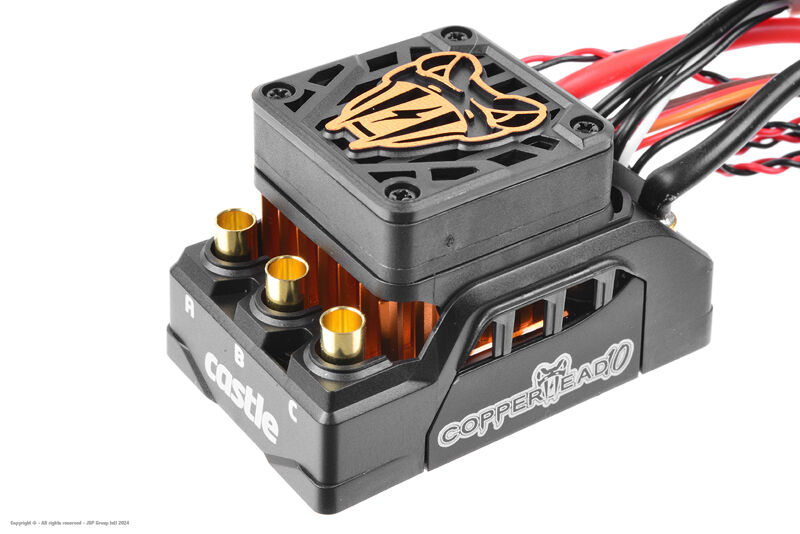

ESC - Specs

ESC- Input Voltage Range (V)

2S - 4S Li-Po

ESC - Current - Cont. (A)

ESC - Current - Peak (A)

ESC - Current - Burst (A)

ESC - BEC - Voltage (V)

Select. 5.5V - 7.5V

ESC - BEC - Cont. (A)

ESC - BEC - Peak (A)

6

ESC - Protection

Waterproof

ESC - Cooling Fan

Yes, 30mm

ESC - Case Material

Aluminium + Plastic

ESC - Programming

ESC - Firmware Update

Supported

ESC - Telemetrie Aux.

Yes, telemetry aux.

ESC - Data Logging

Yes, stored in ESC

ESC - Real-Time Data

• Throttle Status
• ESC Status
• Current (A)
• RPM (T/min)
• Voltage (V)

ESC - Dimensions

ESC - Length (mm)

55,6

ESC - Width (mm)

35,3

ESC - Thickness (mm)

33,8

ESC - Wires (AWG) - Battery

ESC - Wires (AWG) - Motor

ESC - Connector - Battery

Bullit 4.0mm

ESC - Weight (g)

71

ESC - Application

ESC - Application

1/10 Cars

ESC - Motor Type

Brushed & Sensorless Brushless Motors

ESC - Motor Control

Forward - Brake - Reverse

ESC - Level

Competition - High-End

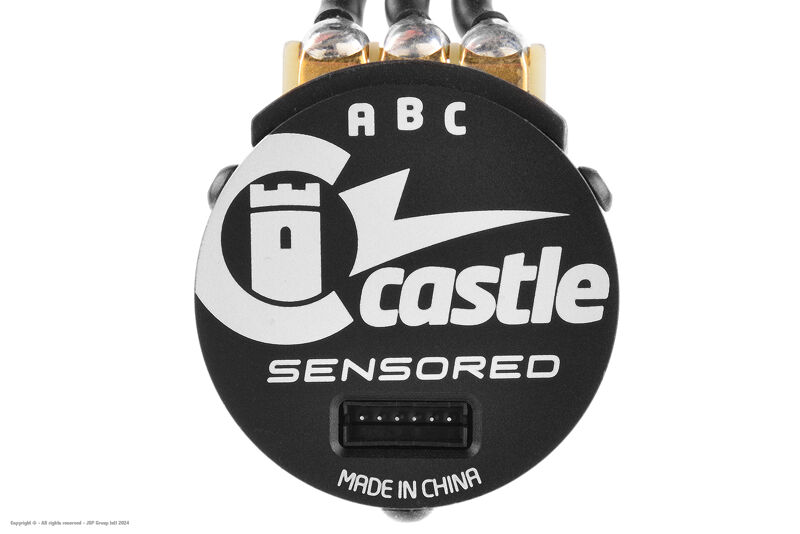

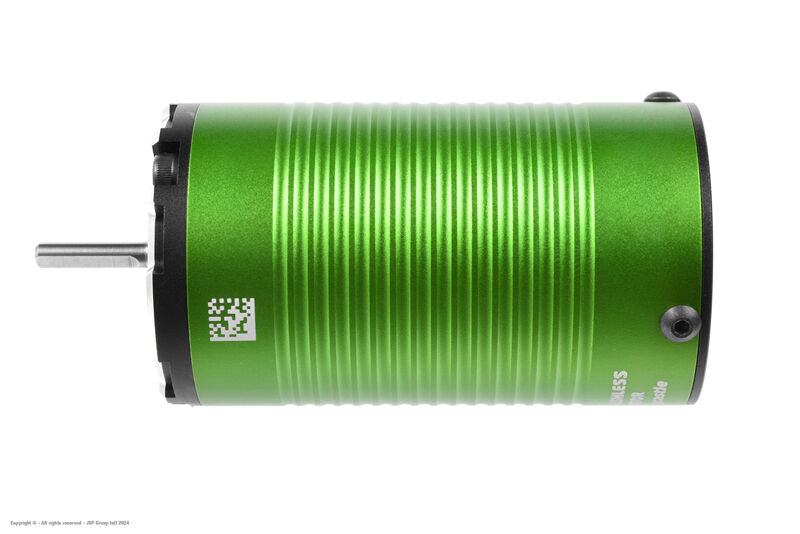

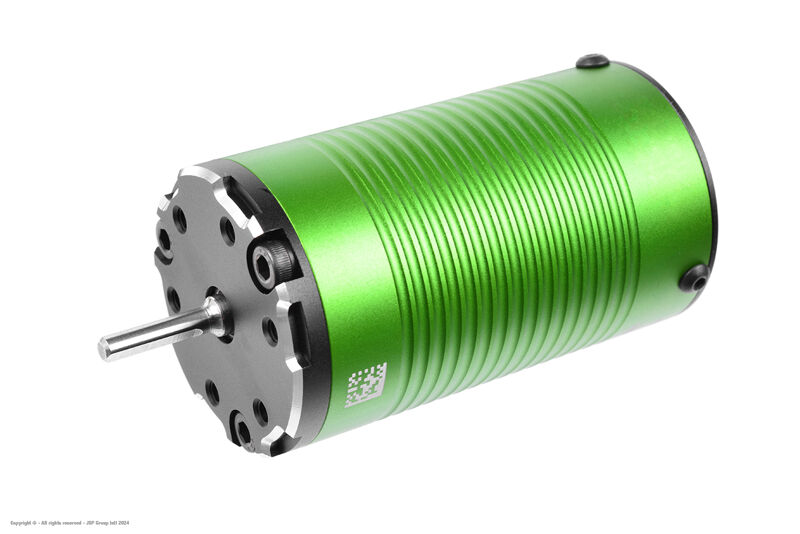

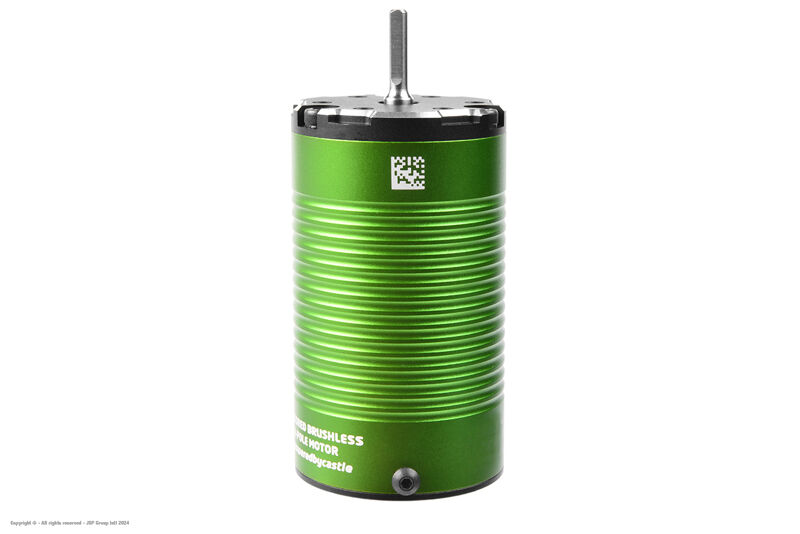

Motor - Specs

1412

Motor - Typ

Brushless - Sensored

Motor - Klasse

Modified Motor

Motor - Anwendung

1/10 Buggy 2WD

Motor - Compliant

Motor - Eingangsspannung (V)

2S - 4S Li-Po

Motor - Turns (T)

Motor - KV (U/min/V)

2100

Motor - RPM Max.

Motor - Timing

Motor - Pole

4-Pole Rotor

Motor - Stator

Motor - Dimensions

Motor - Durchmesser ø (mm)

36

Motor - Length (mm)

62,5

Motor - Shaft Dia. ø (mm)

3.17 mm

Motor - Shaft Length (mm)

15

Motor - Mounting Holes

Motor - Wires (AWG)

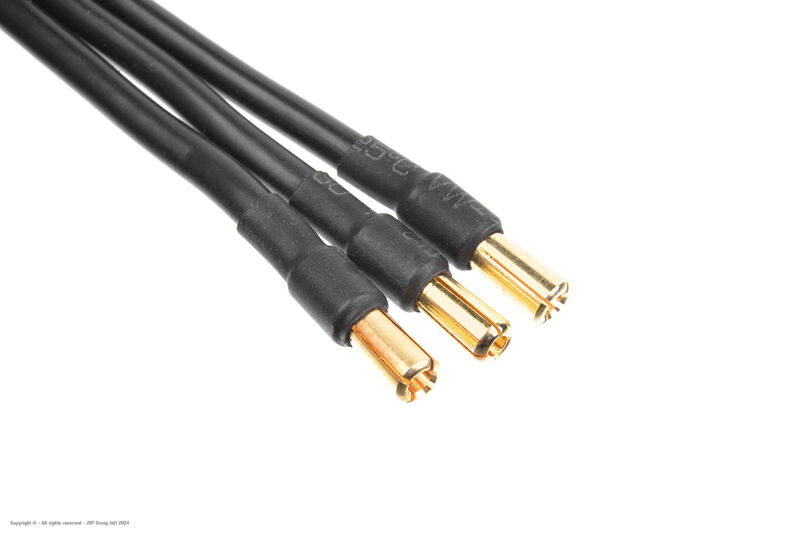

Motor - Connector

Bullit 4.0mm

Motor - Ball Bearing - Front

Motor - Ball Bearing - Rear
