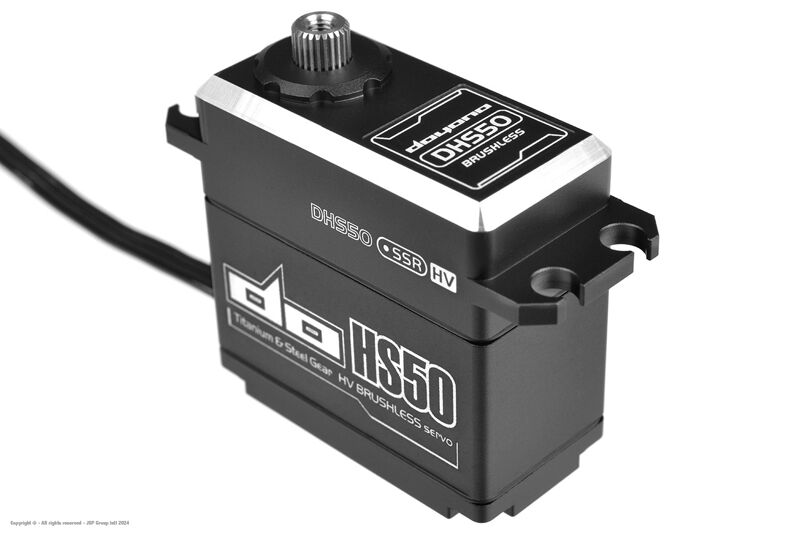

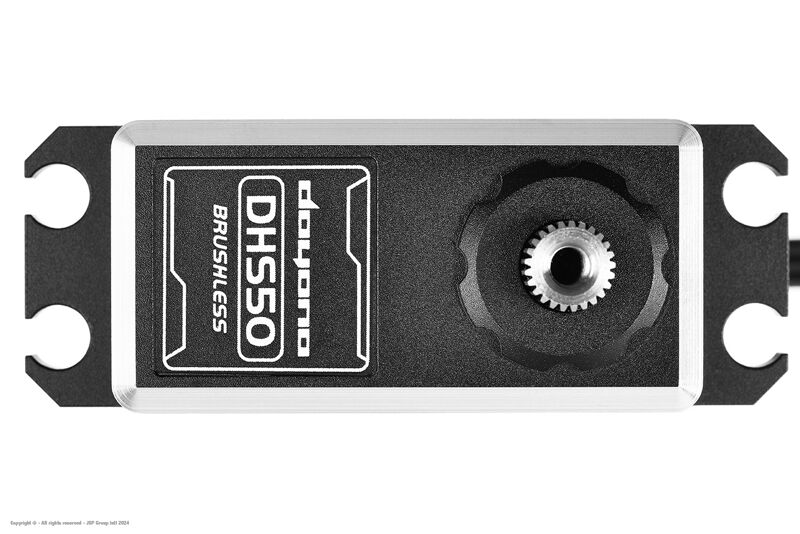

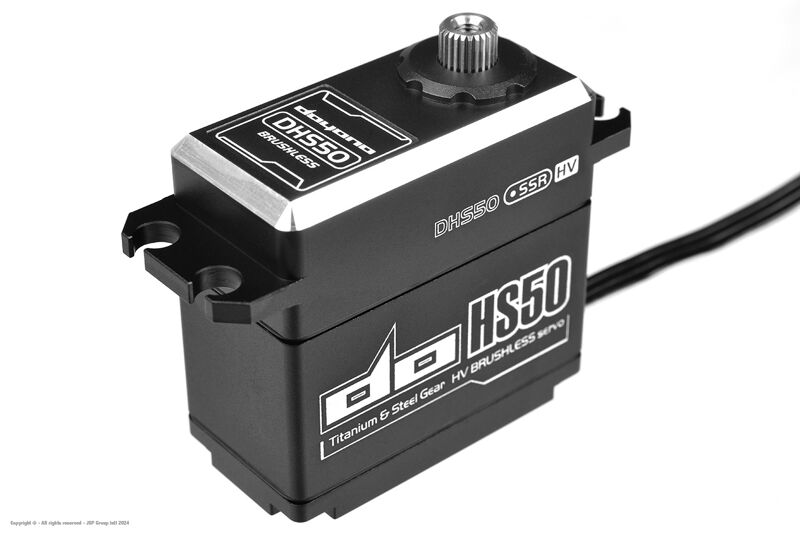

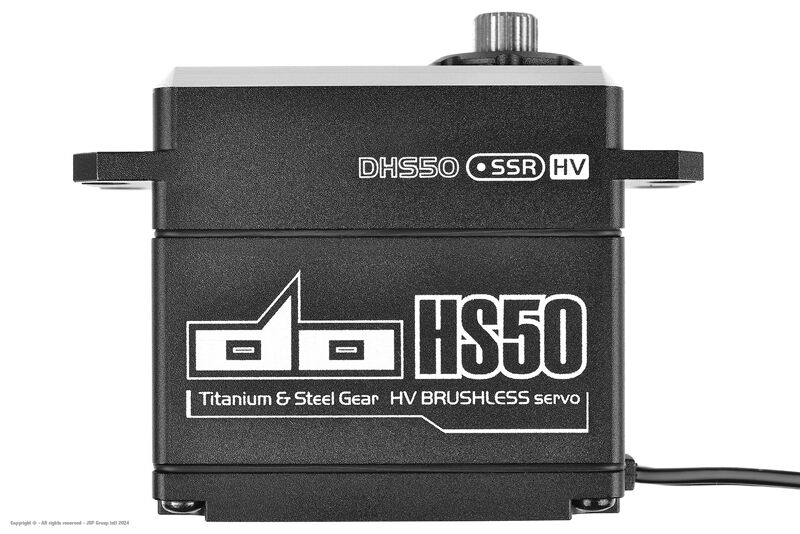

Doyono - Digital HV Servo - DHS-50 - Brushless - 42.0kg Torque

Doyono - Digital HV Servo - DHS-50 - Brushless - 42.0kg Torque - 0.075s Speed

new

Doyono

DO-DHS50

>10 op voorraad

€ 91,95 € 75,99 excl. BTW

Doyono provides premium servos at an affordable price point. This commanding high-voltage servo, with a torque capability of up to 42kgcm, features a brushless motor and is equipped with a titanium steel gear system housed in aluminum. This meticulous engineering guarantees optimal performance, translating to a highly satisfying driving experience.

Features:
• High Voltage Servo
• Gears crafted from enduring titanium and steel
• Lightweight aluminum housing
• Operating Voltage: 6.0-8.4V
• Precise 2µs dead band, centered at 1520µs
• 300mm connection wire length for versatile installations

General Info

Brand: Doyono

Item Nr: DO-DHS50

Barcode: 6959009005025

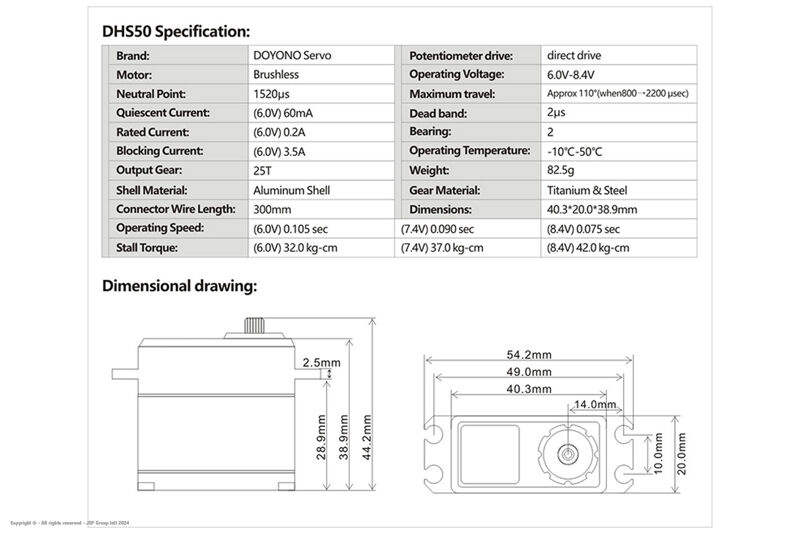

Servo - Specs

Speed 60°/Sec @ 4.8V

Speed 60°/Sec @ 6.0V: 0,11

Speed 60°/Sec @ 7.4V: 0,09

Speed 60°/Sec @ 8.4V: 0,08

Torque kg/cm @ 4.8V

Torque kg/cm @ 6.0V: 32

Torque kg/cm @ 7.4V: 38

Torque kg/cm @ 8.4V: 42

Quiescent Current (mA): 60

Rated Current (mA): 200

Blocking Current (mA): 3500

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,03

Width (mm): 20

Height (mm): 38,9

Weight (g): 81,5

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Brushless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Titanium & Steel Gears

Servo Case: Aluminium Case

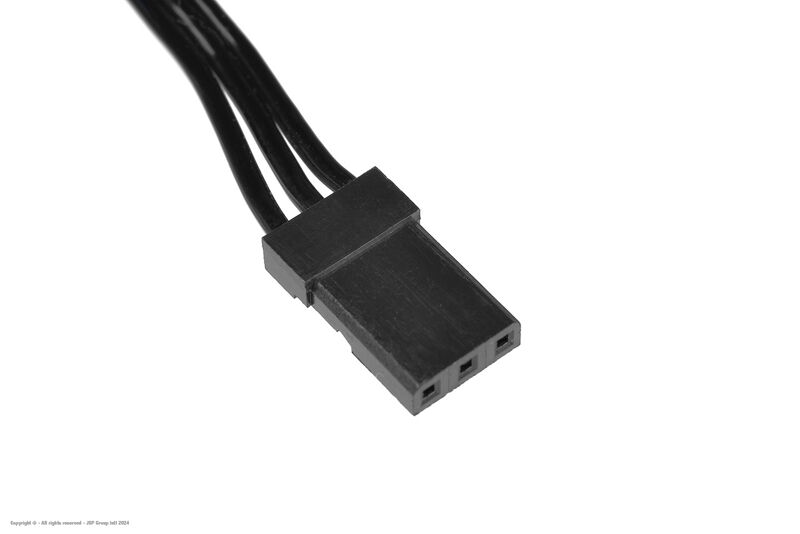

Connector: JR Universal + Black Lead
