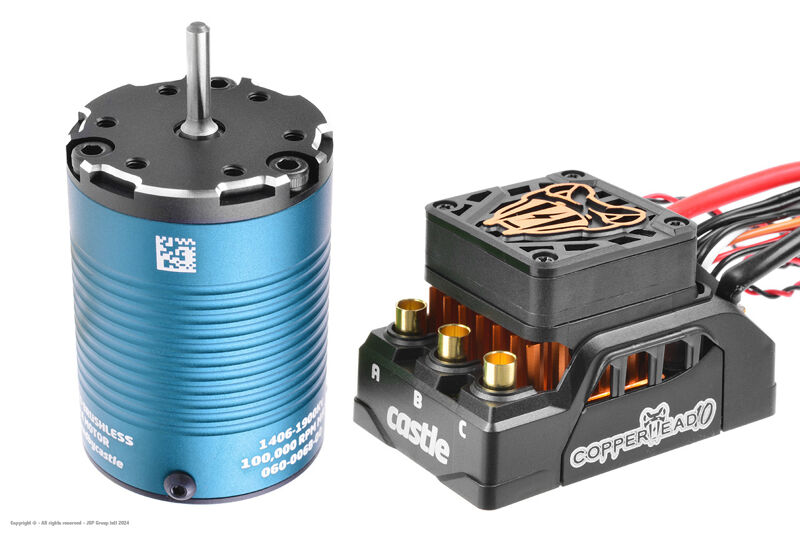

Castle Creations
CC-010-0166-05

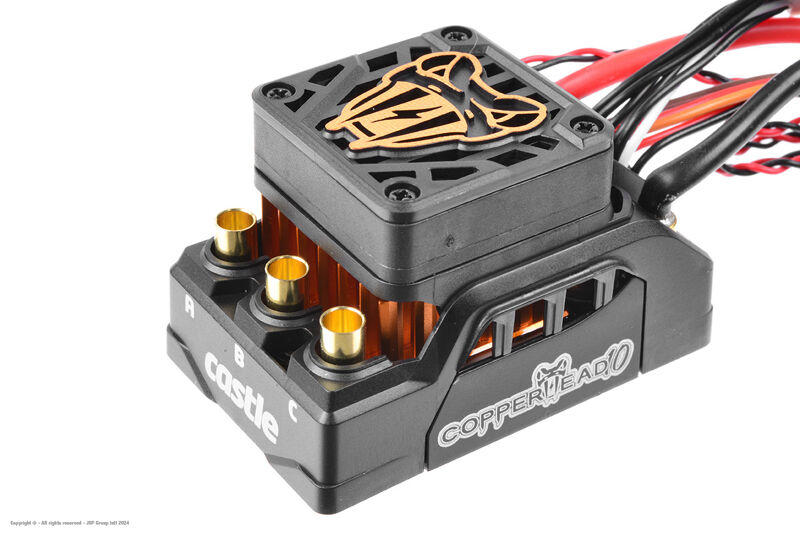

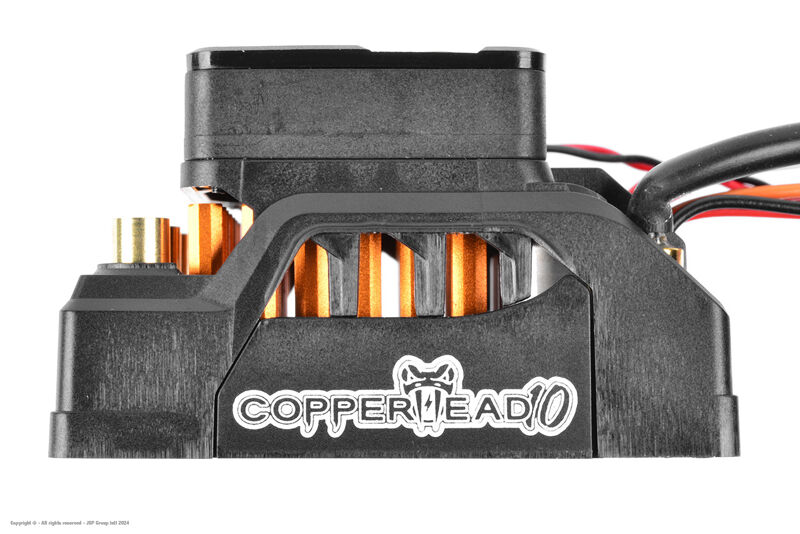

ESC Specs
Application Guidelines: 1:10 scale vehicles weighing up to 2.9 kg (5 lbs.)
Input Voltage Range: 2s-4s
Running Modes: SMARTSENSE™, Sensored Only and Brushed Motor Operation
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (30 mm), fully removable** and includes dual use fan guard (See Operating Use Statements)
Size: 55.6 x 35.3 x 33.8 mm (2.19" x 1.39" x 1.33")
Weight (with wires): 70.9 g / 2.50 oz.
Motor Connectors: 4.0mm female bullets for motor connection
Items Needed for Operation:
Battery Connector required, Polarized Connectors are recommended.
Operating environment:
Waterproof design for all weather conditions. Although COPPERHEAD 10 is
waterproof, it is not intended for operation while completely submerged in liquid.
Always rinse the ESC and motor with clean water after exposure to corrosives or
dirt. While the motor and controller may be waterproof, we suggest users confirm
that the rest of their vehicle, including the batteries, servos, radio and chassis are
also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters.
