General Info

Item Nr

DO-DHC102

Barcode

6959009001027

Brand

Doyono

Servo - Specs

Speed 60°/Sec @ 6.0V

0,07

Speed 60°/Sec @ 8.4V

0,05

Torque kg/cm @ 6.0V

11

Torque kg/cm @ 8.4V

15

Quiescent Current (mA)

40

Rated Current (mA)

200

Blocking Current (mA)

2600

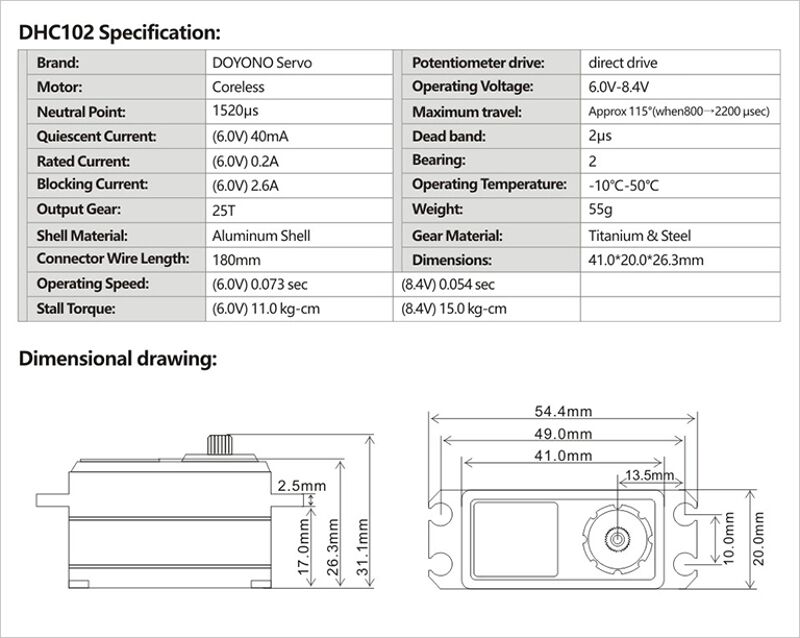

Servo - Dimensions

Servo Type

Low Profile Servo

Spline Type

25T Spline 6,0mm

Length (mm)

41

Width (mm)

20

Height (mm)

26,3

Weight (g)

55

Servo - Technology

Technology

Digital HV

Operating Voltage (V)

6.0V - 8.4V

Servo Motor

Coreless Motor

Servo Protection

Water - Dust Resistant

Servo Positioning

VR Potentiometer - Direct Drive

Servo Gears

Titanium & Steel Gears

Servo Case

Aluminium Case

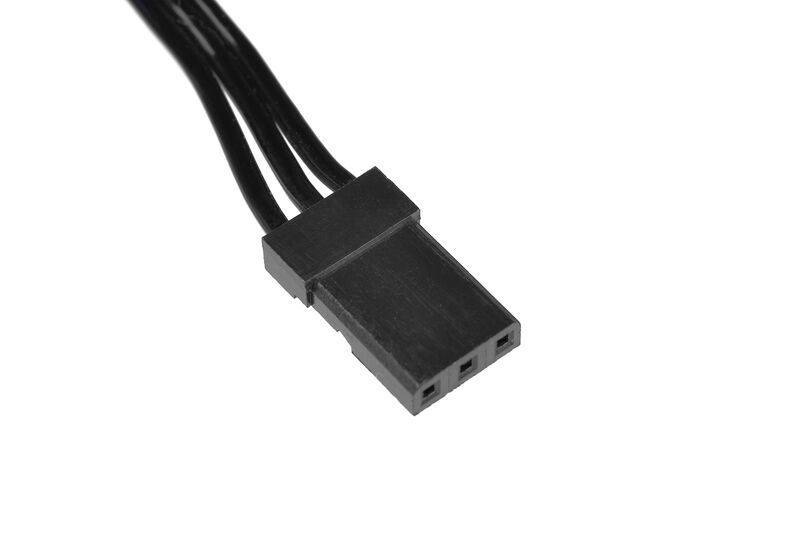

Connector

JR Universal + Black Lead
