Castle Creations
CC-010-0166-15

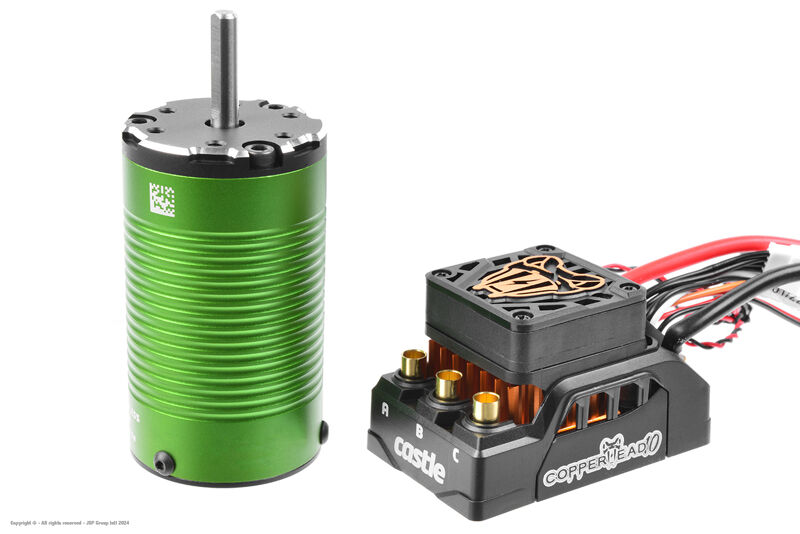

COPPERHEAD 10 1412-2100KV 5MM COMBO COMES WITH:

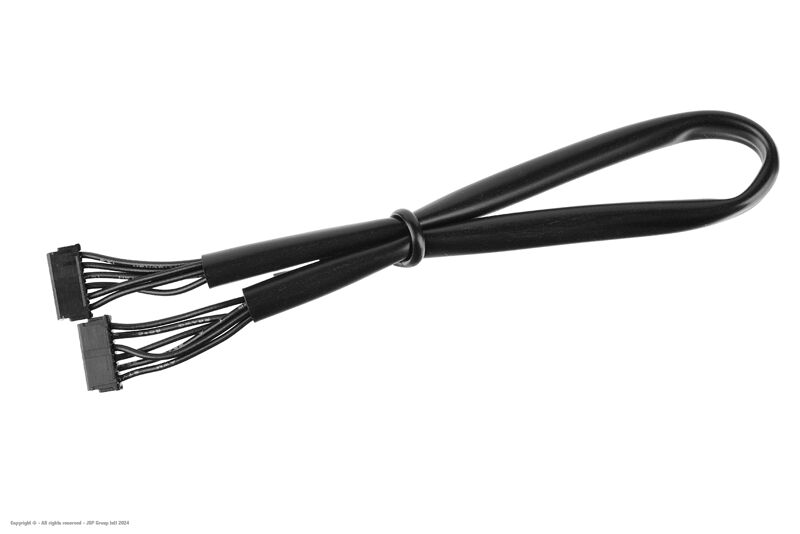

- Copperhead 10 ESC with sensor harness
- 1412-2100KV 5mm Sensored Motor
- Copperhead decals and Audible Alert Reference Chart
- Copperhead Quick Start Guide
- Sensor port dust cover

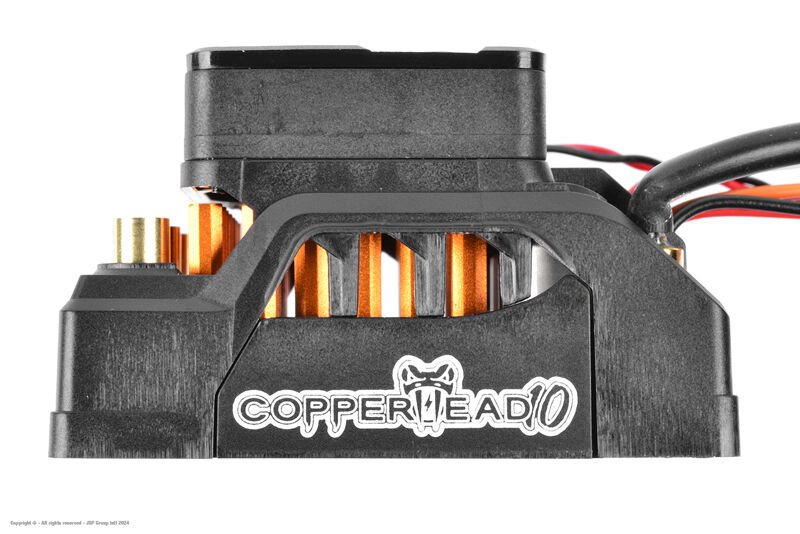

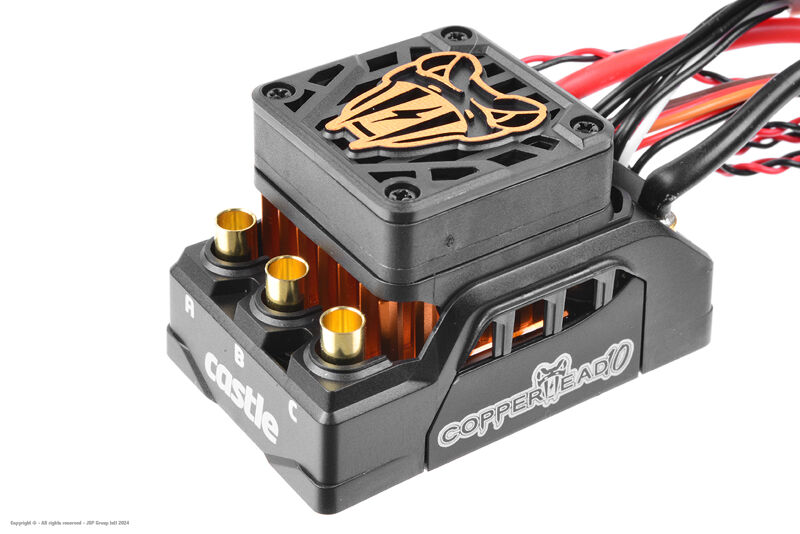

ESC Specs:
Application Guidelines: 1:10 scale vehicles
Input Voltage Range: Min: 2s LiPo - Max: 4s LiPo (16.8V)
Running Modes: SMARTSENSE™, Sensored Only and Brushed Motor Operation
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (30mm), fully removable** and includes dual use fan guard (See Operating Use Statements)
Size: 2.19" x 1.39" x 1.33"
Weight (with wires): 70.9 g / 2.50 oz.
Motor Connectors: 4.0mm female bullets for motor connection
Items Needed for Operation: Battery Connector required, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.
Operating environment : Waterproof design for all weather conditions. Although COPPERHEAD 10 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters.

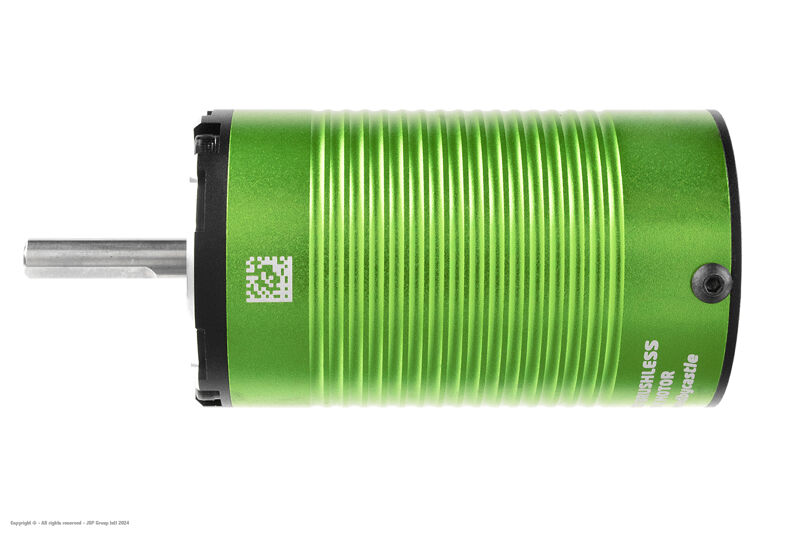

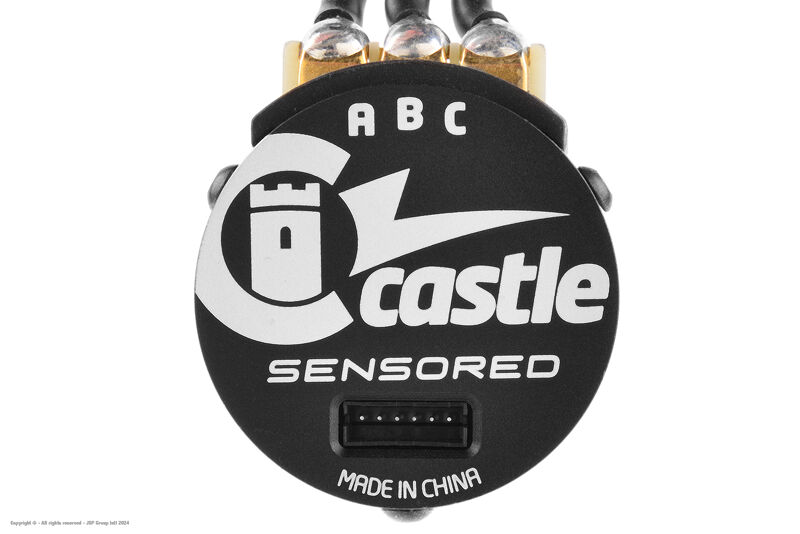

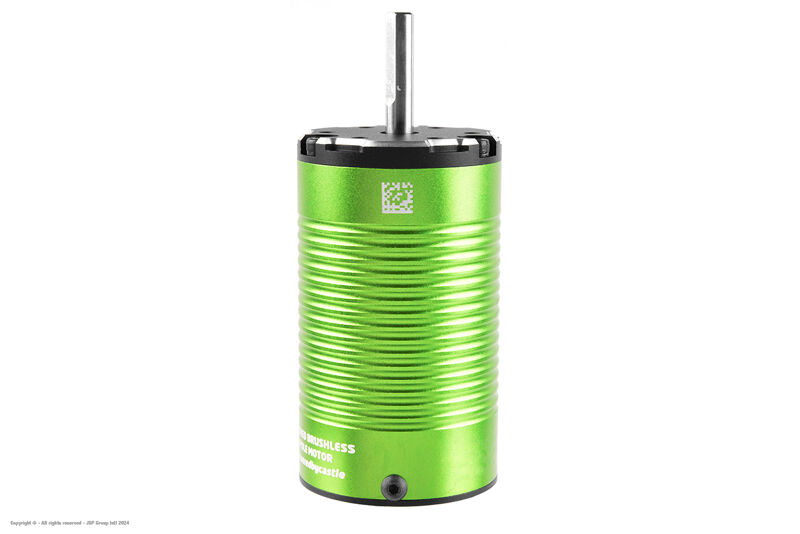

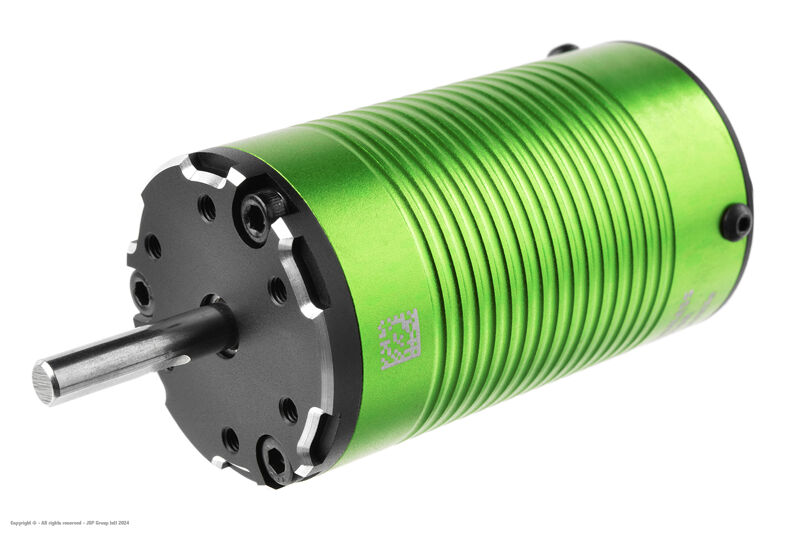

Motor Specs:
Input Voltage Range: 2s-4s
Kv: 2100
Max. RPM: 75,000
Motor Size: Length: 62.5mm - Diameter: 36mm
Shaft Diameter: 5mm
Weight (w/wires): 265.4g (9.4oz)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - Coming Soon

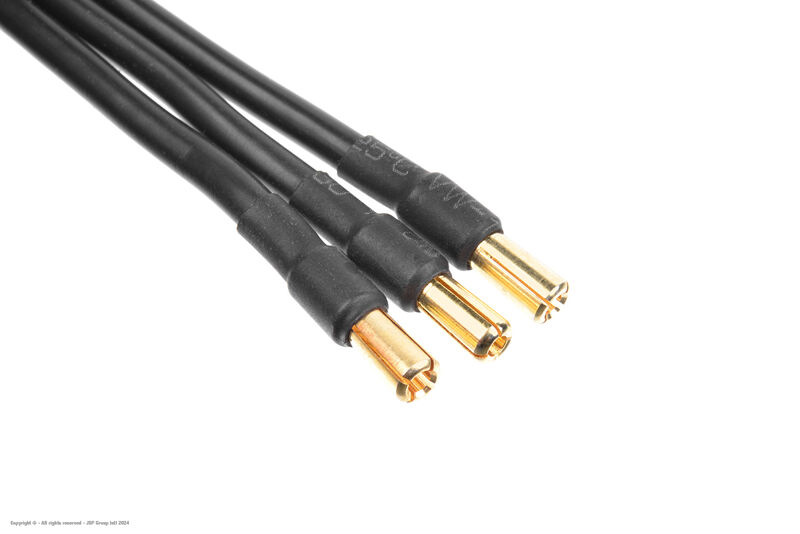

Connectors: 4mm male Castle Bullet Connectors
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Running Modes: SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SC Trucks up to 6.5lbs and up to 4s operation.
Max. Recommended Vehicle Weight: Vehicles weighing up to 6.5 lbs. ready-to-run.
