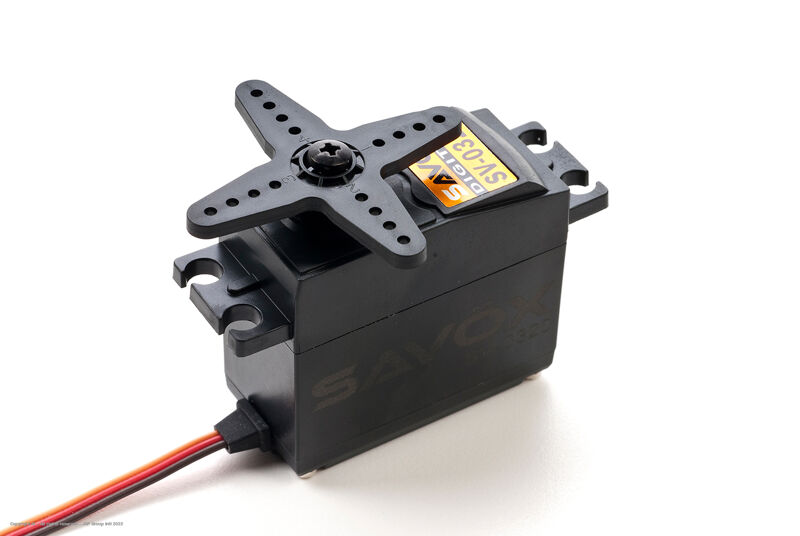

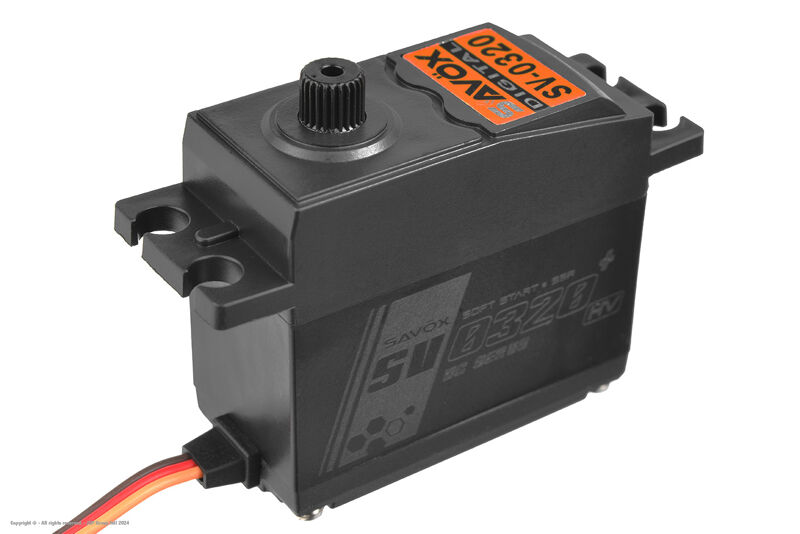

Savox SV-0320+ Digital High Voltage DC Motor Servo
The Savox SV-0320+ is a standard-size digital high-voltage servo from the Savox Hobby Line, designed for RC users who need reliable control, smooth operation and easy HV compatibility at an accessible price level. With 6.0 kg/cm torque at 7.4V and a speed of 0.13 sec/60° at 7.4V, this servo offers dependable everyday performance for cars, aircraft and general RC applications.
The DC motor provides smooth and predictable operation, while the digital high-voltage controller ensures accurate positioning and consistent response. The high-strength composite gear train keeps the servo light, quiet and efficient, making the SV-0320+ a practical choice for ready-to-run vehicles, beginner models and standard hobby applications.
The composite case keeps the servo lightweight and cost-effective, while the standard-size format makes installation straightforward in many RC models. Thanks to its high-voltage capability, 25T spline, water-resistant protection and Sanwa SSR compatibility, the SV-0320+ is a reliable choice for casual drivers, beginners, weekend bashers and hobby pilots who want trusted Savox performance without overcomplicating their setup.
The “+” version includes additional functionality such as Soft Start and Sanwa SSR compatibility, offering improved start-up behavior and broader compatibility with advanced radio systems.
Features:
- Standard-size digital high-voltage servo
- Part of the Savox Hobby Line
- 6.0 kg/cm torque at 7.4V
- Speed 0.13 sec/60° at 7.4V
- DC motor for smooth and predictable operation
- Digital HV technology for accurate positioning and reliable response
- High-strength composite gears for smooth, quiet and efficient operation
- High-voltage operation up to 7.4V
- Composite case for low weight and practical everyday use
- Water-resistant protection
- 1 ball bearing for smooth output support
- 25T spline output shaft
- 12-bit PCB for precise control
- Soft Start function
- Compatible with Sanwa SSR
- Ideal for RC cars, aircraft, ready-to-run upgrades and general hobby applications
Technical Specifications:
- Model: SV-0320+
- Servo Type: Standard-size digital high-voltage servo
- Motor Type: DC motor
- Gear Type: High-strength composite gears
- Case Type: Composite case
- Operating Voltage: 6.0V – 7.4V
- Torque @ 6.0V: 4.5 kg/cm
- Torque @ 7.4V: 6.0 kg/cm
- Speed @ 6.0V: 0.16 sec/60°
- Speed @ 7.4V: 0.13 sec/60°
- Idle Current: 5 mA
- Operating Current @ 6.0V: 180 mA
- Operating Current @ 7.4V: 240 mA
- Stall Current @ 6.0V: 1300 mA
- Stall Current @ 7.4V: 1600 mA
- Protection: Water resistant
- Positioning: VR potentiometer
- PCB Board: 12-bit
- Bearings: 1x ball bearing
- Spline: 25T, 6.0 mm
- Rotating Direction: Counterclockwise
- Operating Travel: 120°
- Maximum Travel: Approx. 164°
- Neutral Position: 1500 μsec
- Frequency Range: 50–360 Hz
- Dimensions: 40.75 x 20.0 x 38.0 mm
- Weight: 46 g
- Compatibility: Sanwa SSR
- Function: Soft Start
- Connector: JR connector
- Cable Length: 300 ±5 mm
- Operating Temperature: -10°C to 50°C
Packaging Content:
- 1x Savox SV-0320+ digital high-voltage servo
- Standard servo mounting hardware
- Standard servo accessories
