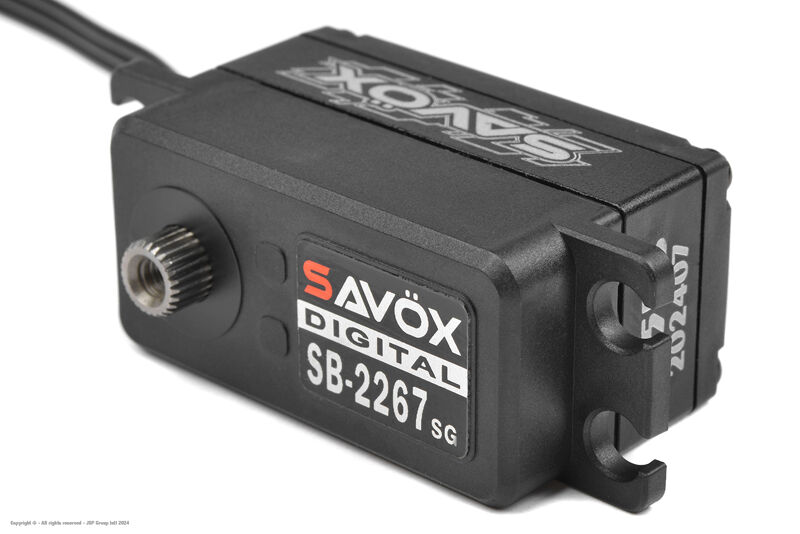

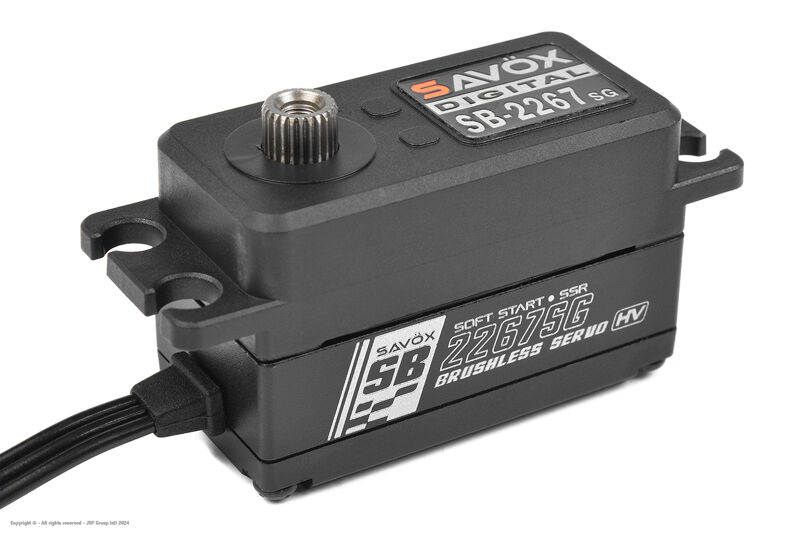

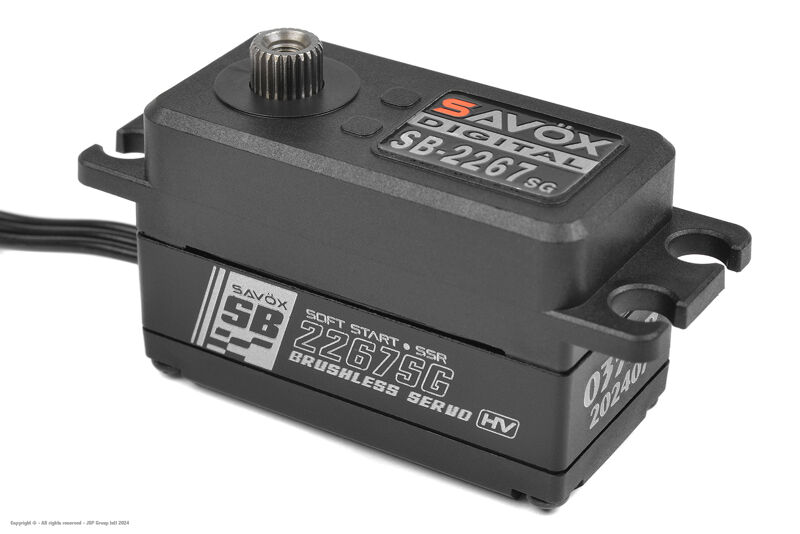

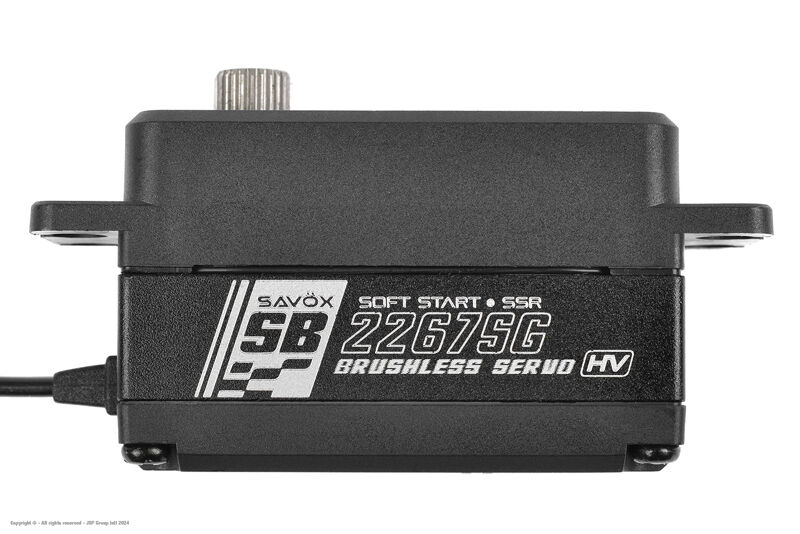

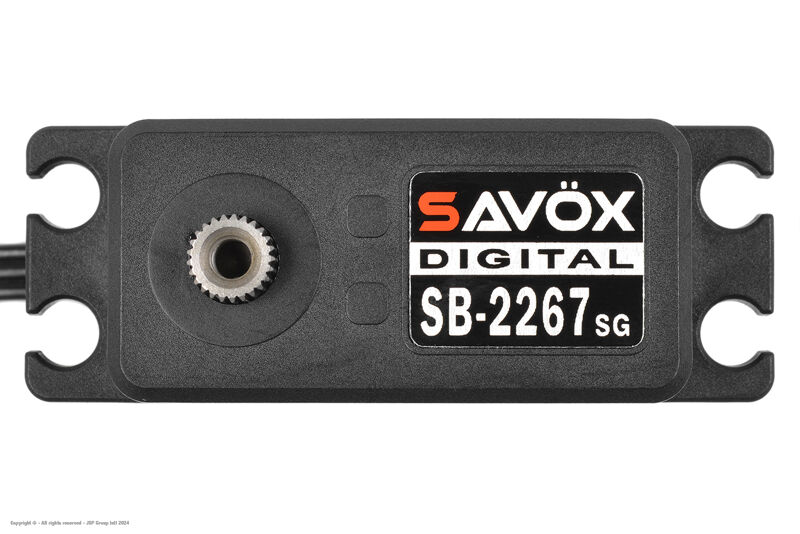

Savox SB-2267SG+ Digital High Voltage Brushless Steel Gear Servo
The Savox SB-2267SG+ is a low-profile digital high-voltage brushless servo designed for demanding RC applications where high torque, fast response and compact installation space are essential. With 32.0 kg/cm torque at 8.4V and a speed of 0.065 sec/60° at 8.4V, this servo delivers an impressive combination of power, speed and precision in a compact low-profile format.
The brushless motor provides high efficiency, longer service life and cooler operating temperatures compared to conventional motor designs. Combined with digital high-voltage servo technology and a 12-bit PCB board, the SB-2267SG+ offers precise positioning, strong holding power and consistent response under load.
The specialized steel gear train is built for durability in demanding RC use, while the full aluminium case provides strength and improved heat dissipation. The all-black finish gives the servo a clean and stealthy look, making it ideal for high-end RC racing chassis and custom builds where both performance and appearance matter.
The “+” version includes additional functionality such as Soft Start and Sanwa SSR compatibility, offering improved start-up behavior and broader compatibility with advanced radio systems.
Features:
- Low-profile digital high-voltage brushless servo
- 32.0 kg/cm torque at 8.4V
- Speed 0.065 sec/60° at 8.4V
- Brushless motor for longer life, high efficiency and cooler operation
- Digital HV technology for precise and reliable control
- 12-bit PCB board for accurate response
- Specialized steel gears for strength and long service life
- Full aluminium case for durability and improved heat dissipation
- Water-resistant protection
- 25T spline output shaft
- All-black finish for a clean and stealthy look
- Soft Start function
- Compatible with Sanwa SUR, Sanwa SSR, Futaba UR and Futaba SR
- Ideal for 1/10 scale on-road vehicles, touring cars, racing cars and high-performance steering applications
Technical Specifications:
- Model: SB-2267SG+
- Servo Type: Low-profile digital high-voltage servo
- Motor Type: Brushless motor
- Gear Type: Specialized steel gears
- Case Type: Aluminium case
- Operating Voltage: 6.0V – 8.4V
- Torque @ 6.0V: 18.0 kg/cm
- Torque @ 7.4V: 25.0 kg/cm
- Torque @ 8.4V: 32.0 kg/cm
- Speed @ 6.0V: 0.10 sec/60°
- Speed @ 7.4V: 0.08 sec/60°
- Speed @ 8.4V: 0.065 sec/60°
- Quiescent Current: 5 mA
- Rated Current: 250 mA
- Blocking Current: 6300 mA
- Protection: Water resistant
- Positioning: VR potentiometer, direct drive
- PCB Board: 12-bit
- Bearings: 2x ball bearings
- Spline: 25T, 6.0 mm
- Dimensions: 40.8 x 20.2 x 26.25 mm
- Weight: 57 g
- Compatibility: Sanwa SUR, Sanwa SSR, Futaba UR, Futaba SR
- Function: Soft Start
- Connector: JR universal connector with coloured lead
Packaging Content:
- 1x Savox SB-2267SG+ digital high-voltage brushless servo

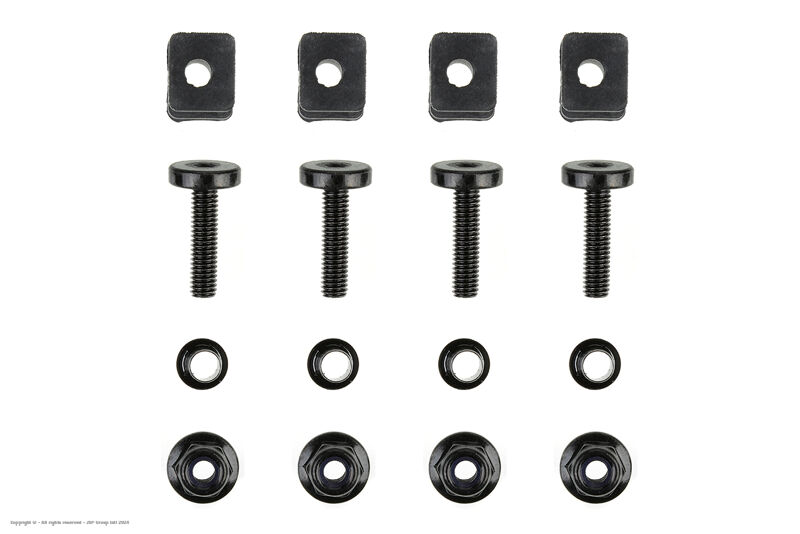

- Standard servo mounting hardware

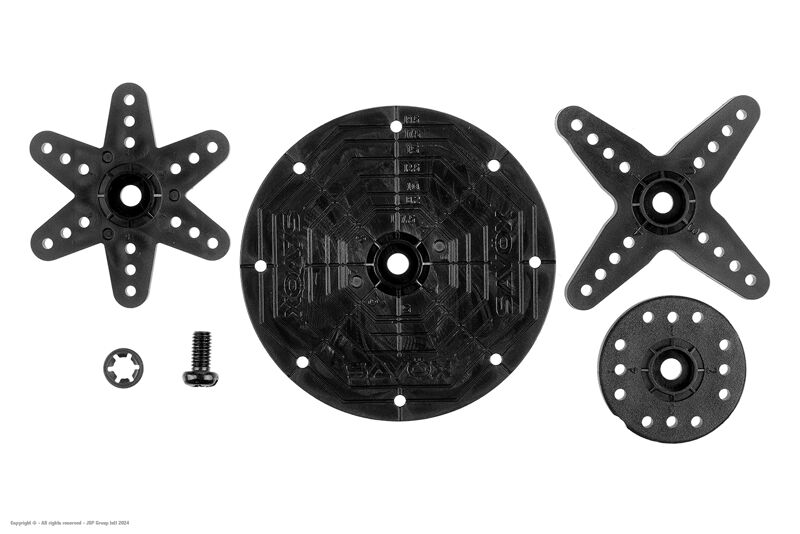

- Standard servo accessories
