General Info

Brand

Castle Creations

Barcode

819326013287,00

Item Nr

CC-060-0115-00

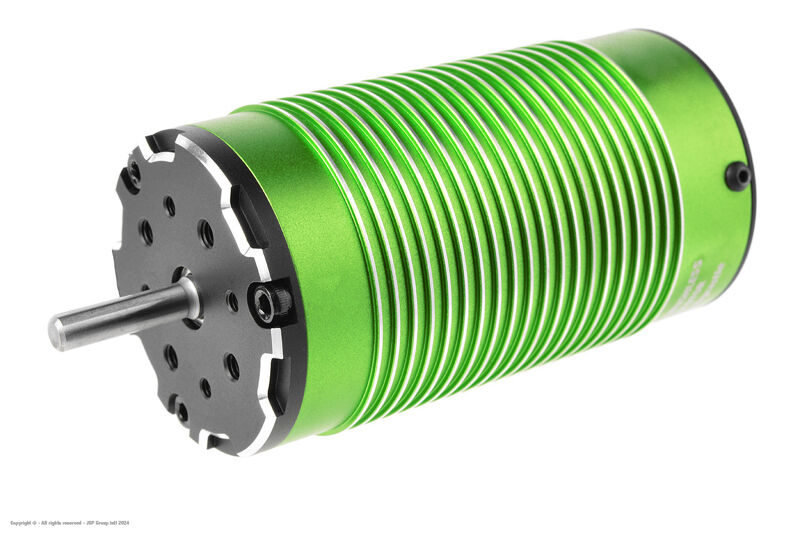

Motor - Specs

Motor - Aplicación

• 1/8 Truggy
• 1/8 SCT
• 1/6 Buggy
• 1/8 Monster Truck
• 1/7 Off-Road
• 1/8 On-Road
• 1/7 GT CAR

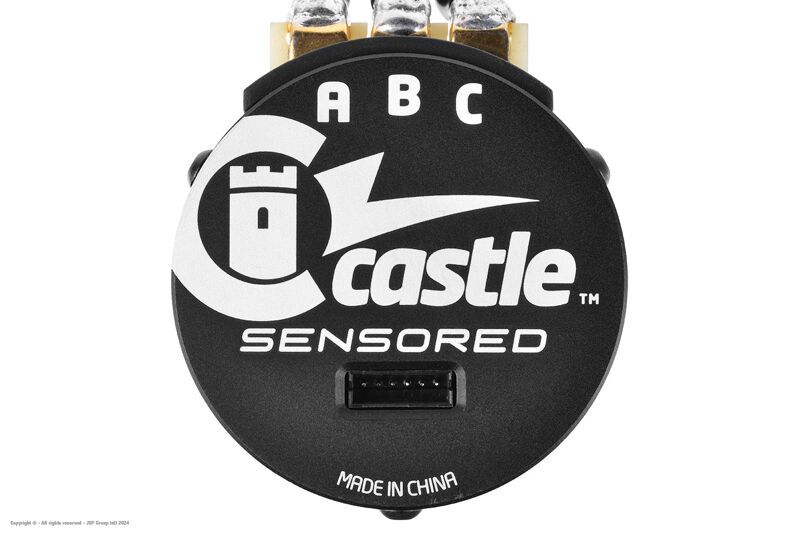

Motor - Tipo

Brushless - Sensored

Motor - Categoría

Sport Motor

Motor - Compliant

Motor - Turns (T)

Motor - KV (Rpm/V)

1650,00

Motor - RPM Max.

60000,00

Motor - Tensión de entrada (V)

3S - 8S Li-Po

Motor - Timing

Fixed Timing

Motor - Poles

4-Pole Rotor

Motor - Stator

12-Slot Stator - 0.2 Steel Laminations

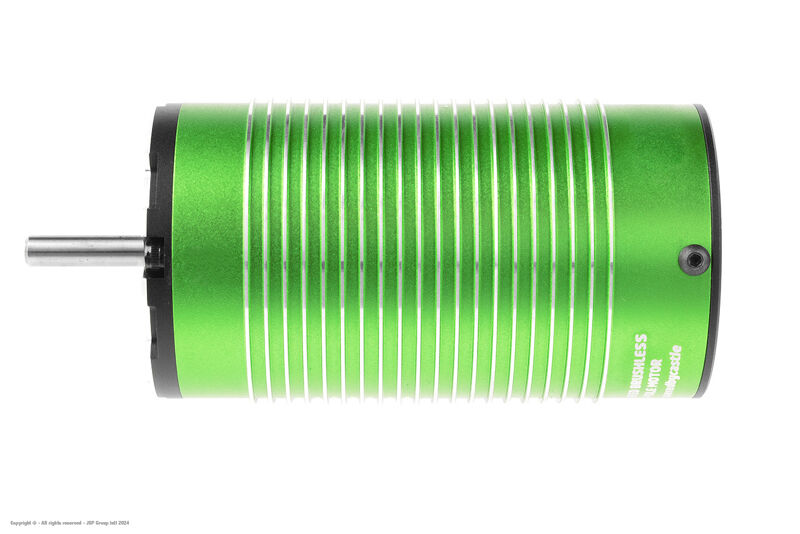

Motor - Dimensions

Motor - ø diám. (mm)

41,60

Motor - Length (mm)

88,80

Motor - Shaft Dia. ø (mm)

5.0 mm

Motor - Shaft Length (mm)

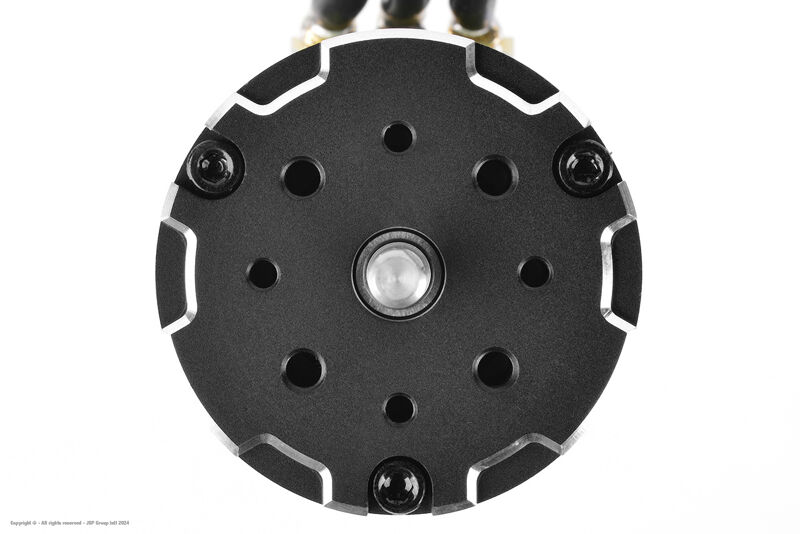

Motor - Mounting Holes

M3 / M4 @ 25.4 mm

Motor - Wires (AWG)

10 AWG

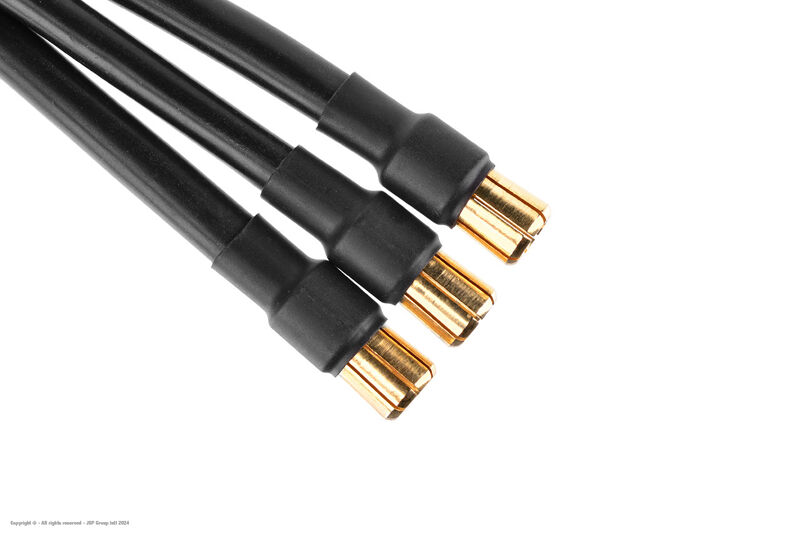

Motor - Connector

Bullit 6.5mm

Motor - Ball Bearing - Front

Motor - Ball Bearing - Rear
